D-Link DI-604 4-port Broadband Router

Logitech X-220 Review

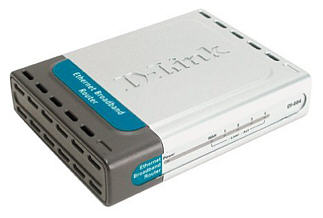

The D-Link DI-604 4-port Broadband Ethernet Router is an essential piece of equipment for anyone who is networking up to 4 home PCs and/or connecting any or all of them to the internet via a broadband (DSL or cable modem) connection.

The DI-604 has at least two functions. First it's a router/switch. This means it can route traffic from any PC connected to it to any other PC connected to it (up to 4 in total), plus it can route internet traffic to and from any of the 4 connected PCs. This means that a single broadband connection can be shared by up to 4 PCs and all the PCs can be tied together in a local area network. The D1-604 will run at either 10MB/s or 100Mb/s depending on the speed of the ethernet cards in the PC. It will automatically select the highest speed.

The DI-604 is also acts as a firewall. This is a device that sits between your PC and the internet and controls the traffic between the two. It prevents unauthorized access to your PC by malicious systems which probe for unused TCP/IP ports. It can also filter traffic by IP, URL or domain if you so choose to do so.

Since this is a photography site not a computer geek site, I won't do into more details of operation, but I will say that I've been using this router for the last two months to network 3 PCs (Windows 2000 and Windows XP) and connect them to the internet via a broadband cable modem. It's been on for 24hrs/day, 7/days a week and never glitched once. The price is only $34.99 from Amazon and it qualifies for free shipping. Through May 1st 2005 there is also a $10 mail-in rebate making the final cost $24.99. For such a useful accessory, that's a real bargain. Highly recommended.

It you really want all the technical stuff, it's on the D-Link website

Technical Specifications

Standards
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3 NWay Auto-Negotiation
VPN Pass Through/Multi-Sessions
  • PPTP
  • L2TP
  • IPSec
Advanced Firewall Features
  • NAT with VPN Passthrough (Network Address Translation)
  • MAC Filtering
  • IP Filtering
  • URL Filtering
  • Domain Blocking
  • Scheduling
Device Management
Web-Based – requires at least Microsoft Internet Explorer v5 or later; Netscape Navigator v4 or later; or other Java-enabled browsers.
Media Access Control
CSMA/CA with ACK
LEDs
  • Power
  • WAN
  • Local Network—10/100
Operating Temperature 32°F to 131°F ( 0°C to 55°C)
  Humidity 95% maximum (non -condensing)
Power Input External Power Supply DC 5V, 2.4A
Safety & Emissions
  • FCC
  • UL
Dimensions
  • L = 5.6 inch (142mm)
  • W = 4.3 inch (108.8mm)
  • H = 1.2 inch (31mm)
Weight 0.44 lbs (200g)
Warranty One Year
