Canon EOS Digital Rebel T1i (EOS 500D) Review
ISO settings and Image noise
The Digital Rebel T1i has a "normal" ISO range from 100 to 3200, whereas the XSi had a range of 100-1600. The T1i ISO range can be expanded to include ISO 6400 and ISO 12800 via a custom function, making it the equal of the new EOS 50D which also covers ISO 100-12800
The reason why Canon (and other camera makers) offer a "standard" and "expanded" ISO range is twofold. First the "normal" range should give good results and low noise, whereas the "expanded settings" may be lower quality. However there is a more technical explanation. In the "normal" or "native" settings, ISO is determined by the gain of the analog amplifiers between the sensor output and the analog-to-digital converters. In the expanded range settings, the effective ISO is obtained by a digital technique which could be considered equivalent to "pushing" film. For example if ISO 1600 is the highest normal settings, then an ISO 3200 "expanded" setting might be obtained by under-exposing the sensor by one stop at ISO 1600 and then digitally processing the resulting image to increase the brightness up to a level that you'd expect from ISO 3200. Just like with film this results in somewhat lower image quality, noisy shadow detail and a small loss of dynamic range.
When comparing the noise in images from different cameras you have to be quite careful because just about all cameras apply some sort of digital noise reduction to images shot at high ISO settings. In fact even with all noise reduction functions turned "off", the camera may still apply some default level of noise reduction to JPEG images. Digital noise reduction can sometimes work wonders, but it can smear image detail if too strong - and at really high ISO settings it has to be strong because intrinsic image noise is so high.

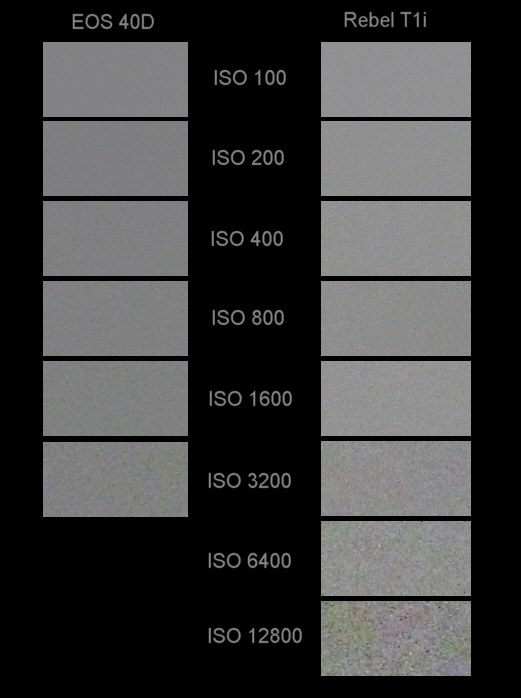

The best way to look at the intrinsic image noise is to shoot RAW and make sure that all possible noise reduction functions are turned off (or at least at their minimum setting) before converting the images to JPEG. This is the way the following images from the EOS 40D and T1i were obtained. Note that these are 100% crops from the original images, so on most monitors would represent sections of a very large print, typically somewhere around 24" x 36".

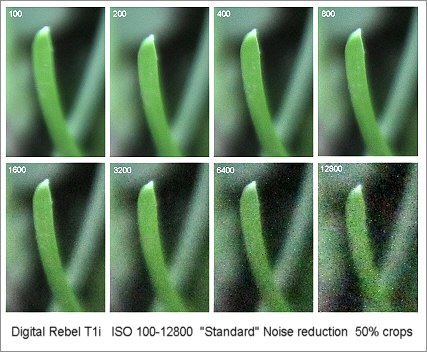

As you can see, at low ISO settings noise really isn't an issue (remember these are equivalent to looking at a really large print from close up). Even at ISO 1600 noise isn't much of an issue. However at ISO 3200 and (on the T1i) ISO 6400 and ISO 12800 get pretty noisy, as shown by the images below:
However for small prints and web use, even ISO 12800 is usable on the T1i, especially with a little post-exposure processing. Below is an example shot at ISO 12800:
Dynamic Range
Dynamic range is related to image noise because high levels of image noise mean that you lose information in the deep shadows. Dynamic range is basically the range in stops between something that doesn't record as absolutely black (0) to the level that's just below absolutely white (4096 for 14-bit depth). The noisier the shadows are, the more difficult they are to tell from the level you get with no light at all, and so the smaller the dynamic range of the shadows. Using noise reduction has the effect of increasing dynamic range somewhat.
I did not do any scientific measurement of dynamic range, but I did look at the deep shadows in a number of images (using standard noise reduction) and I didn't really see any significant difference between the EOS 40D and the Digital Rebel T1i. Perhaps there is a difference which could be measured in the lab, but it was not obvious from real world tests. That's not to say the 40D and the T1i have the same dynamic range, but rather to suggest that any difference that there is probably won't be seen by most users.
Though I didn't do a scientific evaluation of dynamic range, the Dxomark.com website has. DxO is probably the leading company in the digital camera measurement software business and a maker of one of the leading RAW image converters. Their measurements put the DR of the Digital Rebel T1i and EOS 50D within less than 2/10 stop of each other, at around 11 stops at the ISO 100 setting and 7.3 stops at the ISO 6400 setting. The XSi has a slightly lower DR at ISO 100 )about 10.5 stops) and the EOS 40D has about the same 11 stop range of the 50D and T1i at ISO 100. These numbers are consistent with my own unscientific observations.
