The Panasonic Lumix GH4
Today (02/06/14) Panasonic announced the Lumix GH4 DSLR. It has a 16MP 4/3 sensor (17.3 x 13mm) and uses the micro 4/3 lens mount. Nothing particularly special there, but the GH4 has a unique feature. It can shoot 4K video at 24 or 30fps and this is the first time that 4K video has been available on a MILC (Mirrorless Interchangeable Lens Camera). 4K video is the next step up from 1080 Full HD. 1080 Full HD has a 1920x1080 pixel format, while 4K video is 3840x2160 pixels, i.e. it has 4x the number of pixels and twice the linear resolution. To take advantage of this you need a 4K capable TV or monitor, but those are now becoming more available. You can get a TCL 50" 4K LCD TV for around $700. I'm sure it's not studio quality, but it shows 4K is entering the mainstream. You can even pick up a Seiki 39" 4K TV for around $400. The larger "brand name" TVs are still in the $2000 range though. To edit 4K video you can get Corel's Video Studio x6 for $36, so that's not a deal breaker either!
Of course the GH4 is also a very capable camera for still photography with a 16MP sensor, a magnesium frame, a quad core processor, an OLED viewfinder, a tilt and 3" swivel OLED screen, ISO 25600 and a 12 fps continuous shooting rate. It's also dust and moisture sealed.

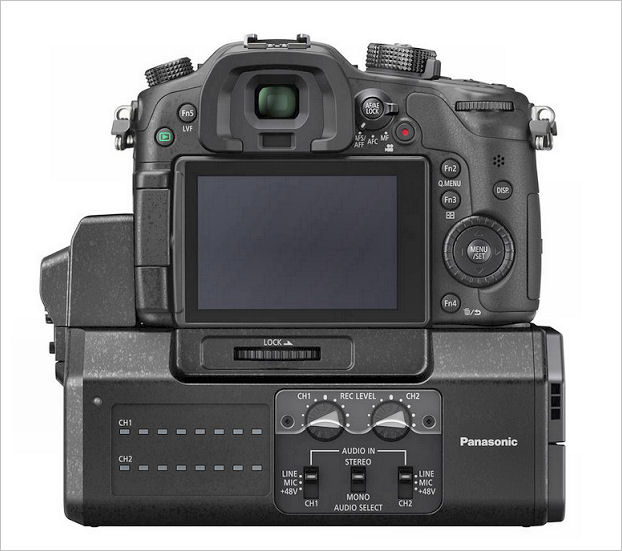

Panasonic Lumix GH4 with DMW-YAGH interface
For professional use Panasonic have a DMW-YAGH interface unit with Full HD (4:2:2 / 10-bit) four parallel outputs that can be used for 4K (4:2:2 / 10-bit) output - with time code, as well as professional audio inputs and real time LED audio level monitoring.
How much and when? Not yet announced. The GH3 currently sells for around $1300 so the GH4 might be somewhere around $1500-$1600. Just a guess but probably in the ballpark. Not bad if you want to shoot 4K video! Alternative 4K cameras are the Canon EOS 1D-C ($12,000) if you want a full DSLR or the Sony FDR-AX100 ($2000), a camcorder with a fixed lens and a smaller (1") sensor.
Here's the Panasonic Press Release with more details
Here are links to the Panasonic Lumix GH4 and accessories at ADORAMA
- PANASONIC LUMIX GH4 BLACK CAMERA BODY
- PANASONIC DMW-YAGH INTERFACE UNIT
- PANASONIC DMW-FL580L FLASH - WIRELESS
The Panasonic LUMIX GH4 – Photos to impress, 4k videos to inspire
Boasting mobility and intuitive image capture in every condition, 4K video shooting the LUMIX GH4 is the ultimate interchangeable lens camera changing the boundaries of professional photography and videography
7th February 2014 – Panasonic has today announced the LUMIX DMC-GH4, its most advanced and high specification interchangeable lens camera, featuring newly engineered technology - including 4K video recording - to meet the requirements of professional photography and videography.
Compact, rugged and lightweight, the LUMIX DMC-GH4 is ideal for professional photographers that specialize in field work, while its newly developed image sensor, wide line-up of Micro Four Third lenses and 4K video shooting capability expand the range of possibilities for professional and creative video producers.
Boasting an improved 16.05-megapixel Live MOS sensor and Venus Engine processor, along with an enhanced fast and accurate Auto Focus (AF) system, the LUMIX DMC-GH4 is engineered for precision control and achieving professional results in any situation. Its classically designed, rugged and easy-to-grip chassis is both splash proof and dustproof, creating the perfect photography or video tool to withstand all shooting conditions.
Re-engineered for optimum image quality
By further developing its cutting-edge imaging technologies, Panasonic has dramatically improved both the image and video quality of the LUMIX DMC-GH4, meaning it can achieve premium resolution, image rendering and color reproduction, whatever the conditions of the shoot:
High quality, high sensitivity sensor: The LUMIX DMC-GH4 boasts a newly developed 16.05-megapixel Digital Live MOS Sensor that achieves high quality, high sensitivity image recording with very fast response times. With approximately 50 percent higher speed signal readout compared to the LUMIX DMC-GH3, the LUMICX DMC-GH4 avoids the rolling shutter effect when using the electronic shutter.
Professional processing: The LUMIX DMC-GH4 has a new Venus Engine image processor, which dramatically boosts sensitivity, gradation performance, resolution, and color reproduction. Superior noise reduction systems - including a new Random Filter for noise reduction - have also been included, enabling fantastic results even in low light and at the maximum ISO level of 25600. A new quad-core CPU ensures the camera can achieve the high speed signal processing that is required for rich video recording in 4K, while resolution has been improved by applying a newly designed processing routine, which allows natural edge processing to subtly render details, such as hair, extremely accurately.
High speed, high precision shooting
For professional and enthusiast photographers and videographers alike, precision control and speed are paramount. With the LUMIX DMC-GH4, Panasonic has further developed the renowned quality of the LUMIX G series’ AF systems, achieving ultra-precise results in even the most challenging and quickly developing situations:
Precision AF: Even the most fast-moving subject can be captured with utmost clarity and accuracy thanks to the LUMIX DMC-GH4’s high precision Contrast AF system. The Contrast AF system is enhanced by the integration of DFD (Depth from Defocus) technology, which further shortens the time to set focus. As a result, the LUMIX DMC-GH4 achieves ultra-high speed AF of approximately 0.07 seconds[1].
Ultimate focus versatility: The flexibility of composition has also been improved with 49 focus points, as well as a Custom Multi mode, which allows users to freely select focus blocks out of the 49 focusing areas either manually or automatically. With Full-area AF, the focus point can be set anywhere in the field of view, and can be magnified either with MF ring or with the cursor key in MF Assist mode to precisely control the set focusing distance. Alongside Face Recognition AF, newly incorporated Eye Detection AF further improves the accuracy of portrait photography.
The speed to capture the unexpected: The speed of the LUMIX DMC-GH4’s burst shooting is dramatically improved - boasting 12 FPS at full resolution - to capture even the fastest moving subjects in perfect focus. The LUMIX DMC-GH4’s shutter speed – up to a maximum of 1/8000 second - enables users not only to capture spur-of-the-moment shots of fast-moving subjects, but also to use high speed lenses with open aperture for impressive defocus effects. In addition, both built-in and external flash can be synchronised, with maximum 1/250 second shutter speed.
Immersive, cinematic and versatile videography, in stunning 4K
With the LUMIX DMC-GH4, Panasonic has removed the gap between consumer and professional video cameras. The additional benefit of 4K recording in various formats and frequencies enables videographers to create stunningly immersive and realistic cinematic worlds, full of detail and true color. At the same time, the professional and versatile recording capability will suit every kind of production site and shoot:
The highest quality shooting experience, in 4K: A key advancement in the LUMIX GH4 is the addition of 4K video recording in MOV/MP4[2], enabling videographers to realize their creative visions in Ultra HD resolution. The LUMIX GH4 is also capable of Full HD video with ultra-high bitrate at 200 Mbps (ALL-Intra) or 100 Mbps (IPB).
Flexibility for the most versatile professional recording: The LUMIX DMC-GH4 can record in multiple high quality video file outputs - including MOV, MP4, AVCHD Progressive and AVCHD - meaning you’ll always have the right tools for the task at hand to quickly and conveniently transfer and edit your work. In MP4 and MOV, professionals can record high quality sound in LPCM (Linear Pulse Code Modulation) or AAC, as well as select system frequencies between 59.94Hz (23.98Hz) / 50.00Hz / 24.00Hz.
Unleashing creativity: With VFR (Variable Frame Rate), video can be recorded in both dramatic slow motion and thrilling fast motion – such as 96 FPS or 4x speed - all in Full HD. Stunning stop motion animation and time lapse shots are also available, while precise control over video image quality can be achieved through Zebra Pattern to finely control white wash-out; and focus peaking to accurately manage the focus while pulling. Exclusive gamma presets for video recording are now available in Creative Video mode - “CINELIKE D” and “CINELIKE V” – enabling truly cinematic results.
Professional outputs for every kind of shooting situation: The LUMIX DMC-GH4 is also capable of real-time image output to an external monitor, in 4:2:2 / 8-bit[3], via an optional micro HDMI cable. 4:2:2 / 10-bit is also available for professional video creation that requires strenuous monitoring of the footage. The LUMIX DMC-GH4 is also equipped with functions that meet the global standard for synchronous video recording. 1KHz Test Tone and Color Bars (SMPTE / EBU / ARIB Standard) are newly available, while a SMPTE-compliant time code can be embedded to make it easy to synchronize multiple video footage or sound sources in the post-production workflow.
Durable, ergonomic and intuitive design
Ready for adventure, the lightweight and compact LUMIX DMC-GH4 is weather-sealed, and suitable for every kind of shooting challenge. With a high resolution and highly responsive display, as well as an ergonomic design to enable intuitive use of the manual controls on-the-go, the LUMIX DMC-GH4 provides unflinching mobility and versatility:

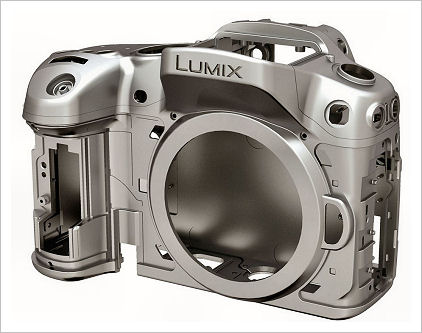

Premium, durable body design: Tough enough to withstand even heavy field use, the main structure of the LUMIX DMC-GH4 is composed of a magnesium alloy full die cast front and rear frame. It also features splash and dustproof construction thanks to the sealing of every joint, dial, and button. The shutter unit has been redesigned to give further durability.
High resolution, high response displays: The LUMIX DMC-GH4 boasts two newly developed high precision, high speed OLED displays for both the LVF (Live View Finder) and rear monitor. Increasing the resolution of the viewfinder to 2,359K dots and redesigning its optics, the LUMIX DMC-GH4’s LVF offers a 1.34x / 0.67x (35 mm camera equivalent) magnification and 100 % field of view.
Furthermore the 3.0-inch 1,040K-dot free-angle static touch control OLED rear monitor (3:2 aspect) has a wide-viewing angle and rotates 180° to the side and tilts 270° up and down.
Ergonomic design: Milliseconds matter in professional shooting, so the LUMIX DMC-GH4’s manual controls have been designed with accessibility and intuitiveness in mind. Two main dials are found on the top and the back of the camera and the mode dial comes with a lock function to prevent the program being changed accidentally when concentrating on the shooting subject. Dedicated buttons allow direct adjustments to exposure compensation, white balance or ISO setting, and many extra settings can be assigned to the LUMIX DMC-GH4’s ten function buttons giving the professional photographer the opportunity to truly customize the camera to their needs. All these external components are designed to be operated easily without taking your eyes off the viewfinder.
Expandability to spark additional creativity
The versatile LUMIX DMC-GH4 also features wide connectivity, professional output options, and a variety of optional accessories to suit the needs of every kind of professional shoot:
Specialist Interface Unit - DMW-YAGH: Panasonic is also introducing a specialist Interface Unit, DMW-YAGH, exclusively for professional/industrial workflow with the GH4 that enables more powerful video transmission. Featuring four parallel Full HD (4:2:2 / 10-bit) outputs the interface can also be used for 4K (4:2:2 / 10-bit) output - both with time code. The XLR input terminals (2ch) are also equipped to connect line or condenser microphone. When connected with a microphone, volume can be controlled for L and R separately and monitored LED audio level can be displayed on the back of the unit. The 12V DC IN is highly compliant with large-capacity industrial battery and continuously supplies the DMC-GH4 with power.
Wide connectivity options for easy sharing in the field: The LUMIX DMC-GH4 integrates Wi-Fi connectivity with NFC technology to offer the most flexible shooting experience as well as instant image sharing, even when you’re in the field. In addition, users can remotely shoot both still images and video with a smartphone or tablet, as well as adjust zoom, focus, aperture and exposure. For smartphones or tablets without NFC, the camera will display a dedicated QR code on its monitor to easily pair the devices.
Professional outputs for flexible shooting: The LUMIX DMC-GH4 also comes with a variety of connections, including a 3.5mm microphone jack for high quality audio recording and a 3.5mm headphone jack to enable audio monitoring when shooting video. The LUMIX DMC-GH4 is also capable of real-time image output on an external monitor via an optional micro HDMI cable. Optional accessories to meet the needs of every shoot: A variety of optional accessories are available with the LUMIX DMC-GH4, including a battery grip and range of microphones .
In addition, a powerful External Flash (DMW-FL580L) is now available which allows high speed charging in approximately 1.7 seconds.
Award-Winning Portrait Lens: LEICA DG NOCTICRON 42.5mm / F1.2 ASPH
Panasonic has also recently introduced the new LEICA DG NOCTICRON 42.5mm / F1.2 ASPH. / POWER O.I.S. (H-NS043) interchangeable lens for the LUMIX G based on the Micro Four Thirds System standard. (35 mm camera equivalent: 85 mm). This incredible lens not only has a maximum aperture of F1.2, but it also incorporates optical image stabilization (POWER O.I.S.) along with full time Auto Focus. Certified by the world-renowned LEICA, exceptional high image quality is guaranteed as well as its sophisticated metal design. The name "NOCTICRON" was newly defined by Leica Camera AG for this lens that achieves a remarkably fast F1.2 aperture among Micro Four Thirds digital interchangeable lenses.The popular 42.5 mm medium-telephoto focal distance is perfectly suited for portraits with rich stereoscopic effect. Together with the high-speed aperture, users can utilize the beautiful soft focus for more impressive, creative shots. It also captures landscape with an extremely natural perspective.
[1] In AFS, With LUMIX G VARIO 14-140mm / F3.5-5.6 ASPH. / POWER O.I.S. or LUMIX G X VARIO 12-35mm / F2.8 ASPH. / POWER O.I.S.
[2] Cinema 4K: 4096x2160 / 24 fps and QFHD 4K: 3840x2160 / up to 30 fps. Use SDXC/SDHC Memory Card compatible with UHS Speed Class 3 (U3) when using high bitrate video recording mode over 100 Mbps.
[3] Setting the HDMI output picture quality
[4:2:2 10bit]:You can output the image through the HDMI connection in higher picture quality, but you cannot record it as a motion picture or still pictures. Ideal when the HDMI output is to be saved on external devices.
