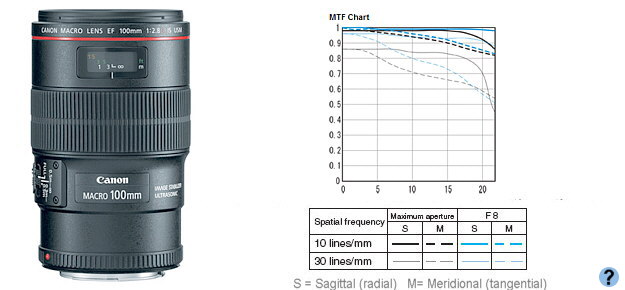

Canon EF 100mm f2.8 L IS Macro USM
Canon EF 100mm f2.8 L IS Macro USM Specifications and Review
| [Back to full Canon EOS Lens List] | |
| Model | Canon EF 100mm f2.8 L IS Macro USM |
| Link to Current Pricing | EF 100mm f2.8 L IS Macro USM |
Production Dates  |
2009 - current |
| Comments | Has a unique hybrid IS system designed for macro work. Offers 4 stops of image stabilization at normal focus distances, 3 stops 0.5x and 2 stops at 1.0x. Sharp, fast with "L" series optics (with 1 UD glass element) and construction. The working distance at 1:1 is around 6". An optional "Tripod Ring D" is available priced around $190 |
| Field of View
(degrees) Horizontal,Vertical, Diagonal Full Frame - 36x24mm APS-C - 22.5x15mm |
Full Frame : H - 20.4 : V - 13.7 : D - 24.4 APS-C : H - 12.8 : V - 8.6 : D - 15.4 |
| Full Frame FOV equivalent with lens on APS-C body |
160 mm (1.6x multiplier) |
| Full Frame FOV equivalent with lens on APS-H body |
130 mm (1.3x multiplier) |
| Image Stabilization |
up to 4 stops |
| Length | 123 mm (4.84 inches) |
| Weight | 625 gm (21.13 oz.) |
| Maximum Diameter | 77.7 mm (3.06 inches) |
| Lens Mount Material |
|
| Lens Color |
Black |
| Filter Size | 67 mm |
| Filter Rotation |
Filter does not rotate |
| Focusing |
Internal Focusing (Length constant) |
| Focus Range Setting(s) |
no information |
| AF motor |
USM |
| Distance Scale | Yes, has distance scale |
| Closest Focus | 0.3 m (0.98 ft) |
| Maximum Magnification | 1x |
| Canon TC compatibility |
No, Canon TCs can not be used |
| Weathersealing |
no information |
| Lens Hood |
ET-73 |
| Tripod Mount |
Tripod Mount Ring D |
| E-TTL II Support |
Yes |
| Elements/Groups |
15/12 |
| Special Glass Elements |
Yes, 1 UD element |
| Diaphragm Blades |
9 (circular) |
|
Check Current Pricing and Availability at Amazon.com |
|
| |
| [Back to full Canon EOS Lens List] | |
With the large number of entries contained in the Canon EOS Lens database it's inevitable the some of presented here may not be complete and/or may contain errors. If you find an error or missing data, please contact me and I will add or revise the data as necessary
