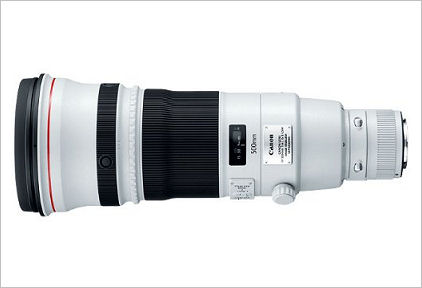

Canon EF 500mm f4.0L IS II USM
Canon EF 500mm f4.0L IS II USM Specifications and Review
The new Series II EF super-telephoto lenses can correct camera shake up to four full shutter speed steps, compared with two shutter speed steps with their predecessors. This improvement is made possible by a new low-friction stabilizer mechanism that is not only more efficient than the previous design but also smaller and lighter. Other enhancements to the IS systems of both new super-telephoto lenses have enabled quieter operation; ideal for use during video capture.
Canon has developed a third Image Stabilization mode option for its super-telephoto EF lenses. First introduced in late 2010 with the EF 400mm f/2.8L IS II USM, and EF 300mm f/2.8L IS II USM lenses, and now available on the new EF 500mm f/4L IS II USM and EF 600mm f/4L IS II USM lenses, IS mode 3 is designed to provide professional sports and wildlife photographers with greater tracking flexibility. When mode 3 is selected on the lens, the Image Stabilization effect will not occur until the shutter is pressed, making the viewfinder image more natural in appearance while tracking a subject. In mode 3 when the shutter button is pressed halfway, the lens will begin detecting camera or lens movement and only during exposure, when the shutter is fully depressed, will the Image Stabilization engage.
Helping filmmakers achieve smoother and more appealing focus shifts when filming on EOS DSLR cameras, Canon has included a new Power Focus (PF) mode on the Company's new super telephoto lenses. This mode allows manual rack focusing to be operated smoothly by turning a playback ring that is normally used for the focus preset function. Both low-speed and high-speed focus shifting are available.
| [Back to full Canon EOS Lens List] | |
| Model | Canon EF 500mm f4.0L IS II USM |
| Link to Current Pricing | EF 500mm f4.0L IS II USM |
Production Dates  |
2012 - current |
| Comments | Canon's latest and even more expensive 500mm supertelephoto. According to Canon, IS has been upgraded, lens coatings have been upgraded and optical performance has been upgraded. The new "II" series lenses are also lighter and better sealed against dust and moisture.
Predicated price at realease is $9499. When will it be available? Probably sometime in early 2012. |
| Field of View
(degrees) Horizontal,Vertical, Diagonal Full Frame - 36x24mm APS-C - 22.5x15mm |
Full Frame : H - 4.1 : V - 2.7 : D - 5 APS-C : H - 2.6 : V - 1.7 : D - 3.1 |
| Full Frame FOV equivalent with lens on APS-C body |
800 mm (1.6x multiplier) |
| Full Frame FOV equivalent with lens on APS-H body |
650 mm (1.3x multiplier) |
| Image Stabilization |
up to 4 stops |
| IS Tripod Detection |
Automatic |
| Length | 383.5 mm (15.1 inches) |
| Weight | 3190 gm (107.87 oz.) |
| Maximum Diameter | 144.8 mm (5.7 inches) |
| Lens Mount Material |
Metal |
| Lens Color |
White |
| Filter Size | 52 mm (Rear Drop-in) |
| Filter Rotation |
Filter does not rotate |
| Focusing |
Internal Focusing (Length constant) |
| Focus Range Setting(s) |
Yes, has selectable focus range(s) |
| AF Stop Button |
Yes |
| Preset Focus |
Yes |
| AF motor |
USM |
| Distance Scale | Yes, has distance scale |
| Closest Focus | 0 m (0 ft) |
| Maximum Magnification | 0.15x |
| Canon TC compatibility |
Yes, Canon TCs can be used |
| Weathersealing |
Weathersealed |
| Lens Hood | No information |
| Tripod Mount |
Fixed Tripod Mount Ring |
| E-TTL II Support |
Yes |
| Elements/Groups |
16/12 |
| Special Glass Elements |
Yes, Fluorite |
| Diaphragm Blades |
9 |
|
Check Current Pricing and Availability at Amazon.com |
|
| |
| [Back to full Canon EOS Lens List] | |
With the large number of entries contained in the Canon EOS Lens database it's inevitable the some of presented here may not be complete and/or may contain errors. If you find an error or missing data, please contact me and I will add or revise the data as necessary
