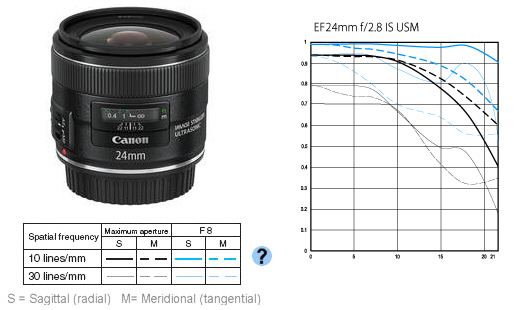

Canon EF 24mm f2.8 IS USM
Canon EF 24mm f2.8 IS USM Specifications and Review
| [Back to full Canon EOS Lens List] | |
| Model | Canon EF 24mm f2.8 IS USM |
| Link to Current Pricing | EF 24mm f2.8 IS USM |
Production Dates  |
2012 - current |
| Comments | The replacement for the original EF 24/2.8. The new lens adds 4 stop image stabilization, a ring USM motor with FT-M, better optics and better coatings. |
| Field of View
(degrees) Horizontal,Vertical, Diagonal Full Frame - 36x24mm APS-C - 22.5x15mm |
Full Frame : H - 73.7 : V - 53.1 : D - 84.1 APS-C : H - 50.2 : V - 34.7 : D - 58.8 |
| Full Frame FOV equivalent with lens on APS-C body |
38.4 mm (1.6x multiplier) |
| Full Frame FOV equivalent with lens on APS-H body |
31.2 mm (1.3x multiplier) |
| Image Stabilization |
up to 4 stops |
| Length | 55.7 mm (2.19 inches) |
| Weight | 280 gm (9.47 oz.) |
| Maximum Diameter | 68.4 mm (2.69 inches) |
| Lens Mount Material |
Metal |
| Lens Color |
Black |
| Filter Size | 58 mm |
| Filter Rotation |
no information |
| Focusing |
Internal Focusing (Length constant) |
| Focus Range Setting(s) |
No, always uses full focus range |
| AF motor |
Ring USM |
| Distance Scale | Yes, has distance scale |
| Closest Focus | 0.2 m (0.66 ft) |
| Maximum Magnification | 0x |
| Canon TC compatibility |
No, Canon TCs can not be used |
| Weathersealing |
Not weathersealed |
| Lens Hood |
EW-65B |
| E-TTL II Support |
Yes |
| Elements/Groups |
11/9 |
| Aspheric Elements |
Yes, 1 aspheric element |
| Diaphragm Blades |
7 (circular) |
|
Check Current Pricing and Availability at Amazon.com |
|
| |
| [Back to full Canon EOS Lens List] | |
With the large number of entries contained in the Canon EOS Lens database it's inevitable the some of presented here may not be complete and/or may contain errors. If you find an error or missing data, please contact me and I will add or revise the data as necessary
