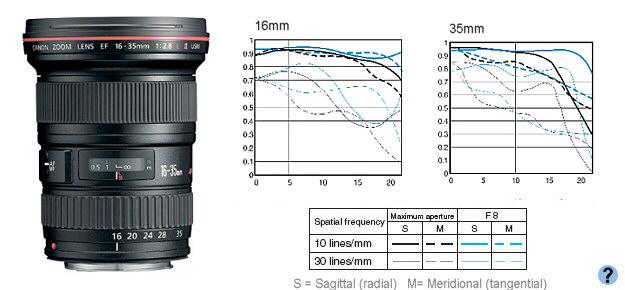

Canon EF 16-35mm f2.8 L II USM
Canon EF 16-35mm f2.8 L II USM Specifications and Review
Brief Review
The EF 16-35/2.8L II USM is Canon's premium ultrawide zoom. Via the use of an additional aspheric element and an updated optical design the "II" version features better edge sharpness than the version it replaces. It also has faster AF. 16mm on full frame is very wide indeed, so to fully utilize this lens you need to have an eye for wideagle composition (which isn't as easy as it sounds). The 16-35/2.8L II USM also makes an excellent "wide-to-normal" zoom on a crop sensor camera, giving and angle of view equal to that of a 25.6-56mm lens on a full frame camera. The EF 16-35/2.8L II USM (on full frame) is very useful for work in tight spaces such as when shooting in small rooms indoors. It's also a good lens for architectual work (though not as good as the 17mm and 24mm tilt and shift lenses which can correct for converging/diverging verticals). One feature of note is the large 82mm filter size. This is an increase from 77mm in the previous version, possibly to accomodate larger optics and lower vignetting. It does mean however that you may need to buy 82mm filters, which are neither cheap nor easy to come by in some types (but polarizers and UV filters are available, and they are the most used filters for digital work).
| [Back to full Canon EOS Lens List] | |
| Model | Canon EF 16-35mm f2.8 L II USM |
| Link to Current Pricing | EF 16-35mm f2.8 L II USM |
Production Dates  |
2007 - current |
| Comments | Canon's premium fast wideangle zoom. Replacement for the original 16-35/2.8L. Better optics. Note that an 82mm filter is now required. |
| Field of View
(degrees) Horizontal,Vertical, Diagonal Full Frame - 36x24mm APS-C - 22.5x15mm |
Full Frame Wide : H - 96.7 : V - 73.7 : D - 107 Full Frame Tele : H - 54.4 : V - 37.9 : D - 63.4 APS-C Wide : H - 70.2 : V - 50.2 : D - 80.4 APS-C Tele : H - 35.6 : V - 24.2 : D - 42.2 |
| Full Frame FOV equivalent with lens on APS-C body |
25.6-56 mm (1.6x multiplier) |
| Full Frame FOV equivalent with lens on APS-H body |
20.8-45.5 mm (1.3x multiplier) |
| Length | 112 mm (4.41 inches) |
| Weight | 640 gm (21.64 oz.) |
| Maximum Diameter | 89 mm (3.5 inches) |
| Lens Mount Material |
Metal |
| Lens Color |
Black |
| Filter Size | 82 mm |
| Filter Rotation |
Filter does not rotate |
| Internal Zooming |
Yes (length stays constant) |
| Focusing |
Internal Focusing (Length constant) |
| Focus Range Setting(s) |
No, always uses full focus range |
| AF motor |
USM |
| Distance Scale | Yes, has distance scale |
| Closest Focus | 0.28 m (0.92 ft) |
| Maximum Magnification | 0.22x |
| Canon TC compatibility |
No, Canon TCs can not be used |
| Weathersealing |
Weathersealed |
| Lens Hood |
EW-88 |
| E-TTL II Support |
Yes |
| Elements/Groups |
16/12 |
| Aspheric Elements |
Yes, 3 aspheric elements |
| Special Glass Elements |
Yes, 2 UD elements |
| Diaphragm Blades |
7 (circular) |
|
Check Current Pricing and Availability at Amazon.com |
|
| |
| [Back to full Canon EOS Lens List] | |
With the large number of entries contained in the Canon EOS Lens database it's inevitable the some of presented here may not be complete and/or may contain errors. If you find an error or missing data, please contact me and I will add or revise the data as necessary
