Canon EF 600/4L IS II USM, Canon EF 500/4L IS II USM and Canon EF 200-400/4L IS USM with Extender
Canon is pulling out the stops prior to the CP+ Camera and Photo Imaging show in Yokohama, Japan which is taking place on February 9th, 10th 11th and 12th (2011).
Today they announced two new super telephoto lenses, the Canon EF 500/4L IS USM II and the Canon EF 600/4L IS USM II which will be available later this year. That's the good news. Now for the bad news. The expected retail price of the EF 500/4L IS II USM is $9499 and the expected retail price of the EF 600/4L IS II USM is $11,999. Note that Canon suggest these will be the retail prices, not the "list" prices, so they represent what you will actually have to pay to get one! If your wallet is deep enough you should be able to get your hands on the 500mm in May, but you'll have to wait until June for the 600mm. These two lenses complete the "II" series telphoto lineup, with the EF 300/2.8L IS II USM and EF 400/2.8L IS II USM which were announced last August (2010).
Improvements to the current 500/4L IS and 600/4L IS lenses include lower weight through the use of magnesium alloys, a new optical design which includes a second Fluorite element, an improved IS system giving up to 4 stops of stabilization and improved anti-reflection coatings on the lens elements.
In another announcement, Canon revealed details of a new Canon EF 200-400/4L IS USM lens which is in development. The unique feature of this lens is that it will have a 1.4x extender built into it which can be moved into the optical path to give a 280-560/5.6 lens. Though they don't comment on why they are using the built in extender, I can think of two reasons. First it will be much faster and more convenient to flip a lever then it is to remove a lens, add an extender and remount the lens. Second, the optics of the extender can be designed to properly match the optics of the lens. No compromises will be needed as may be the case in an extender which has to work with a whole range of lenses. No word on availability or price, but I suspect the price won't be a pleasant surprise. I wouldn't be stunned if it was up there with the 500/4L IS II USM close to the $10,000 mark. The Nikon 200-400/4 ED VR II (no built in extender) currently sells for $6,800, so it's very likely to be more than that.
Here are all the details from Canon:
Canon Will Exhibit The Prototype Of A New Super-Telephoto Zoom Lens At The CP+ Event: The EF 200-400mm f/4L IS USM EXTENDER 1.4x Lens
LAKE SUCCESS, N.Y., February 7, 2011 – Canon Inc. today announced the development of a new super-telephoto lens, the EF 200-400mm f/4L IS USM EXTENDER l.4x, for use with all EOS SLR cameras. A prototype of the new lens will be exhibited at the CP+ tradeshow, held in Pacifico Yokohama, from February 9 - 12, 2011.
The EF 200-400mm f/4L IS USM EXTENDER l.4x is being developed as an L-series super-telephoto lens with an integrated 1.4x extender and high-performance Image Stabilizer technology. The new lens will offer exceptional flexibility by incorporating a built-in 1.4x extender that increases the maximum focal length to 560mm for sports and wildlife photography. High-quality images with high levels of resolution and contrast will be possible through the use of advanced optical materials such as fluorite crystal. The new lens will also include dust- and water-resistant construction designed for extended usage under harsh conditions.
Canon U.S.A. Announces Two New Telephoto Lenses: EF 500mm F/4L IS II USM And EF 600mm F/4L IS II USM
LAKE SUCCESS, N.Y., February 7, 2011 – Canon U.S.A., Inc., a leader in digital imaging, today announced two new versions of its popular Image Stabilizer (IS) super-telephoto lenses. The EF 600mm f/4L IS II USM and EF 500mm f/4L IS II USM super-telephoto lenses deliver incredible image quality at all apertures for professional photographers and filmmakers. It has been 11 years since Canon initially introduced its Image Stabilized 500mm and 600mm lenses and in that time the Company has listened to feedback from professionals and worked to implement their most desired enhancements. Replacing the current EF 500mm f/4L and EF 600mm f/4L IS lenses, both the new EF 600mm f/4L IS II USM and new EF 500mm f/4L IS II USM have experienced a drastic weight reduction making them lighter and more durable than their predecessors. Both lenses also achieve a higher level of image quality through the incorporation of two fluorite optical lens elements which help to minimize chromatic aberration and eliminate color blurring around the edges of the subject. Both new lenses offer improved Image Stabilization, providing the equivalent shutter speed of approximately four steps faster in addition to enhanced durability and operability through thoroughly re-designed optical and mechanical components.
"These lenses were made to be used under the harsh and challenging conditions faced by professionals in the fields of photojournalism, sports and nature photography. Utilizing valuable customer feedback, we have re-designed these lenses to create a powerful telephoto lens lineup for working professionals," stated Yuichi Ishizuka, executive vice president and general manager, Imaging Technologies and Communications Group, Canon U.S.A.
Lighter, More Durable and Enhanced
Canon engineers succeeded not only in reducing the overall weight of these lenses but improving on their optical performance as well. The optical formula of each new lens was re-designed to include two fluorite elements instead of one fluorite and two Ultra-low Dispersion (UD) glass elements. The new lens element configuration weighs less yet performs better. Other factors contributing to the overall weight reduction include increased use of magnesium alloy, use of titanium and a smaller and lighter Image Stabilizer mechanism.
Optically, both lenses will outperform their predecessors through the use of two fluorite elements over the previous one fluorite and two UD glass elements. More fluorite results in better image quality as it reduces chromatic aberration to a greater degree than UD glass. The reduction of chromatic aberration contributes to superior resolution, contrast, and color fidelity; this is especially evident when used in conjunction with Canon's Type III EF Extenders. In addition to the fluorite lens elements, the new super-telephoto lenses also include a nine-blade circular diaphragm for a smoother appearance in areas outside the depth of field of the main subject. In addition, Canon's SWC (Subwavelength Structure Coating) is applied to four internal groups in each lens to improve resistance to flare and ghosting.
A convenient and useful feature when shooting in the often adverse conditions professionals find themselves in, these new lenses are treated with Canon's new fluorine anti-smear lens coating. The fluorine layer is highly oil- and water-repellent so that any oil smears or water droplets on the lens can be wiped off quickly and easily, without the aid of solvents, using a soft dry cloth.
The new Series II EF super-telephoto lenses can correct camera shake up to four full shutter speed steps, compared with two shutter speed steps with their predecessors. This improvement is made possible by a new low-friction stabilizer mechanism that is not only more efficient than the previous design but also smaller and lighter. Other enhancements to the IS systems of both new super-telephoto lenses have enabled quieter operation; ideal for use during video capture.
Canon has developed a third Image Stabilization mode option for its super-telephoto EF lenses. First introduced in late 2010 with the EF 400mm f/2.8L IS II USM, and EF 300mm f/2.8L IS II USM lenses, and now available on the new EF 500mm f/4L IS II USM and EF 600mm f/4L IS II USM lenses, IS mode 3 is designed to provide professional sports and wildlife photographers with greater tracking flexibility. When mode 3 is selected on the lens, the Image Stabilization effect will not occur until the shutter is pressed, making the viewfinder image more natural in appearance while tracking a subject. In mode 3 when the shutter button is pressed halfway, the lens will begin detecting camera or lens movement and only during exposure, when the shutter is fully depressed, will the Image Stabilization engage.
Helping filmmakers achieve smoother and more appealing focus shifts when filming on EOS DSLR cameras, Canon has included a new Power Focus (PF) mode on the Company's new super telephoto lensesi. This mode allows manual rack focusing to be operated smoothly by turning a playback ring that is normally used for the focus preset function. Both low-speed and high-speed focus shifting are available.
Additionally, a new security slot attachment has been included on both of the new super-telephoto lenses to allow a wire-type security lock to be easily affixed, a great safety feature for professionals shooting from high vantage points above arenas and crowds.
Canon EF 500mm f/4L IS II USM Lens for Sports and Nature Photography
The Canon EF 500mm f/4L IS II USM offers professional photographers a lighter weight option for those situations that require a long focal length with improved image quality and enhanced durability over its predecessor. Great for a wide range of applications, the EF 500mm f/4L IS II USM lens is ideal for professional photojournalism, sports photography and nature and wildlife photography. The optical formula of the new lens has been enhanced to include two fluorite lens elements for improved image quality and reduced chromatic aberration. Helping to reduce photographer fatigue and make the lens more portable, Canon has reduced the overall weight of the lens by 18 percent from 136.5 oz to 112.5 oz. The Image Stabilizer provides an equivalent of approximately four full shutter speed steps of shake compensation and has been enhanced through the incorporation of a rolling-ball-friction system in place of sliding parts in the compensation optics barrel for a minimum-friction structure. The overall durability of the lens has also been enhanced through increased usage of magnesium alloy and titanium for lens barrel components, together with weather sealing for all exterior joints and switches and a new fluorine anti-smear coating applied to the front and rear elements.
The Canon EF 500mm f/4L IS II USM lens is expected to be available in May for an approximate retail price of $9,499.00.

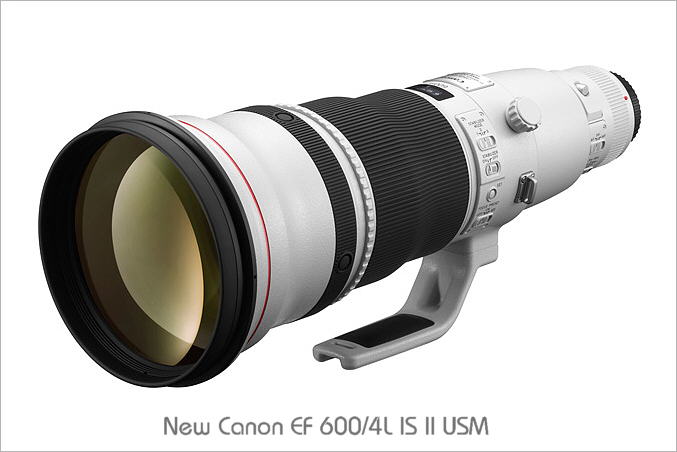

Canon EF 600mm f/4L IS II USM Lens for Wildlife and Photojournalism
The Canon EF 600mm f/4L IS II USM is the successor to the current EF 600mm IS lens first introduced in 1999. This new lens has been engineered for outstanding optical performance and durability and includes two new fluorite lens elements for improved quality and reduced chromatic aberration. Helping photographers in the field, Canon has reduced the overall weight of the lens by a substantial 27 percent from 189.1 oz to 138.3 oz. The Image Stabilizer provides an equivalent of approximately four full shutter speed steps of shake compensation and has been enhanced through the incorporation of a rolling-ball-friction system in place of sliding parts in the compensation optics barrel for a minimum-friction structure. The overall durability of the lens has also been enhanced through increased usage of magnesium alloy and titanium for lens barrel components, together with weather sealing for all exterior joints and switches and a new fluorine anti-smear coating is applied to the front and rear elements.
The Canon EF 600mm f/4L IS II USM lens is expected to be available in June for an approximate retail price of $11,999.00.
