FujiFilm FinePix F30 Preview

FinePix F30

The Fujifilm FinePix F30 6.3MP Digital Camera is unique in point-and-shoot digital cameras in offering  ISO speeds as high as 3200, a speed normally found only on Digital SLRs. High ISO speeds and physically small pixels normally result in unacceptable noise levels. Fuji claim that their sensor technology allows such high speeds even with small pixels, and earlier models (such as the Fujifilm F10), have certainly showed lower than expected noise levels at ISO speeds as high as 1600.

I was hoping to be able to do a "hands on" review of the FinePix F30, but so far it's been quite difficult to get hold of one. I still have hopes of being able to do a full review, but I wanted to post this "preview" since Fuji have a $50 rebate offer on the FinePix F30 (making the final cost under $300) which only runs through July 15th 2006 and so anyone who is thinking of buying one might want to make a decision before that.

• Fuji FinePix F30 - $299.95 (after Rebate)

• Download Rebate Form (.pdf file)
[Note that there is also a $50 on the FinePix V10]

The FinePix F30 may well appeal to the "serious" photographer as a small [3.6" x 2.2" x 1.1"] , light, controllable camera with low light capability. It has aperture priority and shutter priority modes (as well as auto), which give the user some control, and the ISO can be set from 100 to an amazing 3200.

Now the laws of physics won't let you get something for nothing, so a digicam with small pixels and an effective ISO setting of 3200 is not going to produce perfect noise free images. Even the DLSRs that offer ISO 3200 won't do that! However by clever sensor design and a good deal of in-camera digital noise reduction, Fuji seem to have done significantly better than most small digicam manufacturers.


Top view: Power on/off, mode selection dial and shutter release

Based on my review of some published images from the F30 it looks like Fuji have succeeded in bettering the results obtained by the previous FinePix F10, which itself was praised for the quality of its high ISO images (at least up to ISO 800). If I can believe what I've seen, the F30 seems to be about a stop better in terms of image quality, so at ISO 800 the images are similar to ISO 400 images on the F10 - and much better than ISO 800 images form any other small digicam. ISO 1600 is pretty usable, but ISO 3200 images do suffer from artifacts due to the amount of processing required to keep the noise low. They'd probably be OK for small prints and you have to remember that no other small digicam offers ISO 3200 - in fact not all DSLRs do!


Bottom View: Tripod socket, speaker and battery compartment

While the F30 does have shuter speeds from 15s to 1/2000s, aperture priority, shutter priority, exposure compensation and ISO settings from 100-3200, not all combinations are available in all exposure modes. Digicam makers seem to love to automate everything and make their cameras as "idiot proof" as possible, which tends to be frustrating for more advanced shooters. Getting the settings you want (especially for low light work) may take a bit of button pushing and mode switching (and refering to the manual...), but you'll eventually usually be able to get the settings you want - which is more than can be said for most digicams. Just don't expect it to work like a DSLR.

FinePix F30

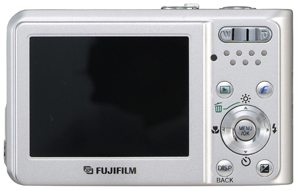

2.5-inch (230,000 pixel) LCD monitor

The F30 has a large, 2.5-inch (230,000 pixel). The LCD has an auto brightness feature and an anti-glare, low reflection CV (Clear View) screen. This is good because the F30 doesn't have an optical viewfinder so the LCD must be used for framing the shot as well as reviewing it.

The FinePix F30 has a reasonably fast (by consumer digicam standards) start-up time of 1.4 seconds, a shooting interval of 1.5 seconds, and a shutter release time lag of 0.01 seconds. Fuji have incorporated the second generation of their "Real Photo Technology" which is a combination of Fujifilm's 6th generation Super CCD sensor, its proprietary RP Processor II, and a high quality Fujinon lens (6 elements in 5 groups with 2 aspherical elements).

FinePix F30

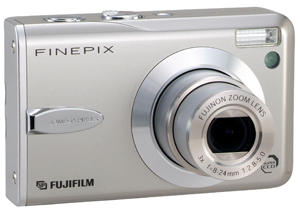

Front view: Lens extended

The camera's 3.0x optical zoom lens has a focal range of 8-24mm (equivalent to 36-108mm on a 35mm camera), with an aperture of f2.8 at the short end and f5.0 at the long end of the range. This can be combined with a 6.2x digital zoom, giving a 18.6x total zoom range (though "digital zoom" is really just cropping the image!).

Fujifilm have added a "Picture Stabilization" mode dial setting to the F30. However this is not an optical image stabilization system. It's a mode which tries to adjust the ISO setting (from ISO 100 to ISO 3200) to give a shutter speed fast enough to eliminate blur due to camera shake.

The F30 has Fujifilm's i-Flash technology. The flash's intensity is based on a variety of factors, such as subject position in the frame, subject size, ambient light, and backlight intensity.

Besides the xD card, the F30 has 10 MB of built-in storage. It's not a lot (3 images at the highest resolution and image quality) but can be useful for shooting in lower resolution modes (78 images at 640x480 or 16 images at 1600x1200)

Additional features

  • 30 fps movie recording (640x480) with mono sound
  • One-touch access to frequently used settings (image size, ISO sensitivity, and FinePix color mode)
  • Continuous shooting mode (2.2 frames/sec., up to 3 frames or 0.7 frames/sec until memory card fills)
  • USB interface for PC connectivity
  • Video output  (NTSC/PAL)
  • FinePix Viewer software
  • PictBridge compatibility
  • xD-Picture card compatible slot.

The FinePix F30 is powered by an included NP-95 rechargeable battery and can take approximately 500 pictures on a single battery charge.

Included with the FujiFilm FinePix F30 are the following items:

  • NP-95 rechargeable battery
  • AC-5VW power adapter
  • hand strap
  • USB cable
  • A/V cable
  • FinePix Viewer CD-ROM.

Fujifilm FinePix F30 Specifications

CCD Sensor 1/1.7-inch Super CCD HR
Number of Effective Pixels 6.3 Million Pixels
Real Photo Technology Yes
Picture Stabilization Yes, Mode Dial
Number of Recorded Pixels Still image: 2,848 x 2,136 / 3,024 x 2,016 (3:2 format) / 2,048 x 1,536 / 1,600 x 1,200 /640 X 480 pixels
Movie: 640 x 480 pixels (30 frames/sec), 320 x 240 pixels (30frames/sec)
Image Processing Type New Fujifilm Real Image Processor - (RP (Real Photo) Processor)
File formats Still image: JPEG (Exif Ver. 2.2), Movie: AVI (Motion JPEG), (Design rule for Camera File system compliant / DPOF-compatible)
Internal Memory Yes - 10MB
Recording Capacity with 256MB xD-Picture Card (not included) Still images Movie
6MP(F) 6MP(N) 3:2 3MP 2MP 0.3MP
640x480 320x240
85 169 169 325 409 1997
Approx. 3.7 min. Approx. 7.3 min.
Lens Fujinon 3.0x zoom lens (6 elements in 5 groups with 2 aspherical elements)
Lens Focal Length 8.0-24.0mm (Equivalent to 36-108mm on a 35mm camera)
Aperture Range F2.8 - F8, 10 steps in 1/3 EV increments
Optical Zoom 3.0x
Digital Zoom 6.2x
Focus - Auto / Manual / Macro Auto/Macro
Focus Range - Normal Approx. 2.0 ft. to Infinity
Foucs Range - Macro Wide Angle: Approx. 2.0 in. to 2.6 ft. Telephoto: Approx. 1.0 ft. to 80cm 2.6 ft
Focusing System AF System: TTL contrast type
AF Mode: Single, Continuous
AF Area: Center, Multi
Low Light AF Focusing Assist Lamp Yes
Exposure Control Programmed AE (AUTO/SP), Aperture Priority AE, Shutter Priority AE
Light Metering (Photometery) TTL 256-zones metering
Color Control Modes Standard, Chrome (Vivid), B&W
Sensitivity Auto / ISO Range equivalent to 100/200/400/800/ 1600/3200
Shutter Release Control Press half way to set focus, all the way to release the shutter.
Shutter Speed 15 sec. to 1/2000 sec. (exposure mode dependant)
White balance Automatic, Preset (Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light), Custom
Flash Mode Auto, Red-eye Reduction, Forced Flash, Suppressed Flash, Slow Synchro, Red-eye Reduction + Slow Synchro
Effective Flash Range  (ISO Auto) 2.0 - 21.3 ft (Wide), 2.0 - 11.5 ft (Tele), 1.0 ft - 2.6 ft (Macro)
LCD monitor 2.5 in., Approx. 230,00 pixels, Coverage approx. 100%
LCD Anti-Glare Coating Yes, Anti-glare/Low reflection coating
LCD Low Light Viewability Gain-up Brightness Mode Auto, Manual
Camera Terminals USB 2.0 high-speed , 5 volt power-input socket, Video-out (NTSC/PAL)
Printing Interface PictBridge, DPOF, and EXIF Print 2.2 Compatible
Power source Rechargeable NP-95 Li-ion Battery, AC Power Adapter AC-5VW (included), additional NP-95 Li-ion battery and AC-5VX AC Adapter available (optional)
Camera Dimensions (W x H x D) 3.6 (W) x 2.2 (H) x 1.1 (D)
Weight 5.5 oz. (not including accessories, batteries & xD Card)
Pictures / Battery Charge (CIPA Standard) Battery NP-95 (1800mAh): approx. 580 frames
Start-up Speed Approx. 1.4 sec.
Shutter Lag Time 1/100 sec. (with AE/AF locked)
Shooting modes Auto, Picture Stabilization, Preprogrammed Scene Position (SP), Macro, Movie, Burst/Continuous, Aperture or Shutter Priority AE
Preprogrammed Scene Modes (SP) Natural Light/Natural Light & with Flash/Portrait/ Landscape/Sport/Night/Fireworks/Sunset/Snow/ beach/Underwater/ Museum/Party/ Flower Close-Up /Text
Continuous Shooting Modes 1.Top-3 (max. 2.2 frames/sec., up to 3 frames)
2.Final-3 (max. 2.2 frames/sec., up to 3 frames)
3.Long-period (max. 0.7 frames/sec., up to memory card size)
Image Management Modes Best Framing, Post shot Assist Window, Frame # Memory
Frame to Frame Intervals 1.5 sec
Movie Recording Movie Recording: 640 x 480 pixels (30 frames/sec), 320 x 240 pixels (30 frames/sec) w/ Monaural sound. Zoom cannot be used during movie recording.
Audio Recording Mode Yes
Video Out NTSC/PAL
Playback Trimming, Image Rotate, Automatic Playback, Multi-Frame Playback, Sort by Date, Voice Memo
Memory Type xD-Picture Card
Other Features High Speed Shooting, Self-timer: approx 2/10 sec., World Time, Language menu interface, Exif Print, Tripod socket, FinePix Photo Mode (F-button)
Optional Accessories AC Power Adapter AC-5VX
xD-Picture Card (256MB to 1GB)
Image Memory Card Reader DPC-R1
Waterproof Housings
NP-95 Li-ion Battery
