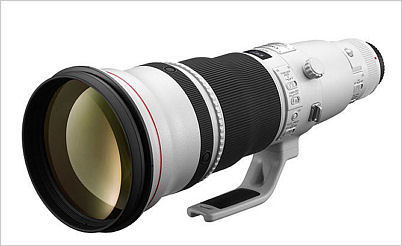

Canon EF 600mm f4.0L IS II USM
Canon EF 600mm f4.0L IS II USM Specifications and Review
The new Series II EF super-telephoto lenses can correct camera shake up to four full shutter speed steps, compared with two shutter speed steps with their predecessors. This improvement is made possible by a new low-friction stabilizer mechanism that is not only more efficient than the previous design but also smaller and lighter. Other enhancements to the IS systems of both new super-telephoto lenses have enabled quieter operation; ideal for use during video capture.
Canon has developed a third Image Stabilization mode option for its super-telephoto EF lenses. First introduced in late 2010 with the EF 400mm f/2.8L IS II USM, and EF 300mm f/2.8L IS II USM lenses, and now available on the new EF 500mm f/4L IS II USM and EF 600mm f/4L IS II USM lenses, IS mode 3 is designed to provide professional sports and wildlife photographers with greater tracking flexibility. When mode 3 is selected on the lens, the Image Stabilization effect will not occur until the shutter is pressed, making the viewfinder image more natural in appearance while tracking a subject. In mode 3 when the shutter button is pressed halfway, the lens will begin detecting camera or lens movement and only during exposure, when the shutter is fully depressed, will the Image Stabilization engage.
Helping filmmakers achieve smoother and more appealing focus shifts when filming on EOS DSLR cameras, Canon has included a new Power Focus (PF) mode on the Company's new super telephoto lenses. This mode allows manual rack focusing to be operated smoothly by turning a playback ring that is normally used for the focus preset function. Both low-speed and high-speed focus shifting are available.
| [Back to full Canon EOS Lens List] | |
| Model | Canon EF 600mm f4.0L IS II USM |
| Link to Current Pricing | EF 600mm f4.0L IS II USM |
Production Dates  |
2012 - current |
| Comments | Introduced along with the 500/4L IS II USM, the new Mk II 600/4 is lighter and better weather sealed then the Mk I version, plus the optics have been upgraded, the coating have been upgraded and the IS system has been improved.
Expected price at release is $11,999, expected release date is early 2012 |
| Field of View
(degrees) Horizontal,Vertical, Diagonal Full Frame - 36x24mm APS-C - 22.5x15mm |
Full Frame : H - 3.4 : V - 2.3 : D - 4.1 APS-C : H - 2.1 : V - 1.4 : D - 2.6 |
| Full Frame FOV equivalent with lens on APS-C body |
960 mm (1.6x multiplier) |
| Full Frame FOV equivalent with lens on APS-H body |
780 mm (1.3x multiplier) |
| Image Stabilization |
up to 4 stops |
| IS Tripod Detection |
Automatic |
| Length | 447 mm (17.6 inches) |
| Weight | 3920 gm (132.55 oz.) |
| Maximum Diameter | 167.6 mm (6.6 inches) |
| Lens Mount Material |
Metal |
| Lens Color |
White |
| Filter Size | 52 mm (Rear Drop-in) |
| Filter Rotation |
Filter does not rotate |
| Focusing |
Internal Focusing (Length constant) |
| Focus Range Setting(s) |
Yes, has selectable focus range(s) |
| AF Stop Button |
Yes |
| Preset Focus |
Yes |
| AF motor |
USM |
| Distance Scale | Yes, has distance scale |
| Closest Focus | 5 m (16.4 ft) |
| Maximum Magnification | 0.15x |
| Canon TC compatibility |
Yes, Canon TCs can be used |
| Weathersealing |
Weathersealed |
| Lens Hood | No information |
| Tripod Mount |
Fixed Tripod Mount Ring |
| E-TTL II Support |
Yes |
| Elements/Groups |
16/12 |
| Special Glass Elements |
Yes, Fluorite |
| Diaphragm Blades |
9 |
|
Check Current Pricing and Availability at Amazon.com |
|
| |
| [Back to full Canon EOS Lens List] | |
With the large number of entries contained in the Canon EOS Lens database it's inevitable the some of presented here may not be complete and/or may contain errors. If you find an error or missing data, please contact me and I will add or revise the data as necessary
